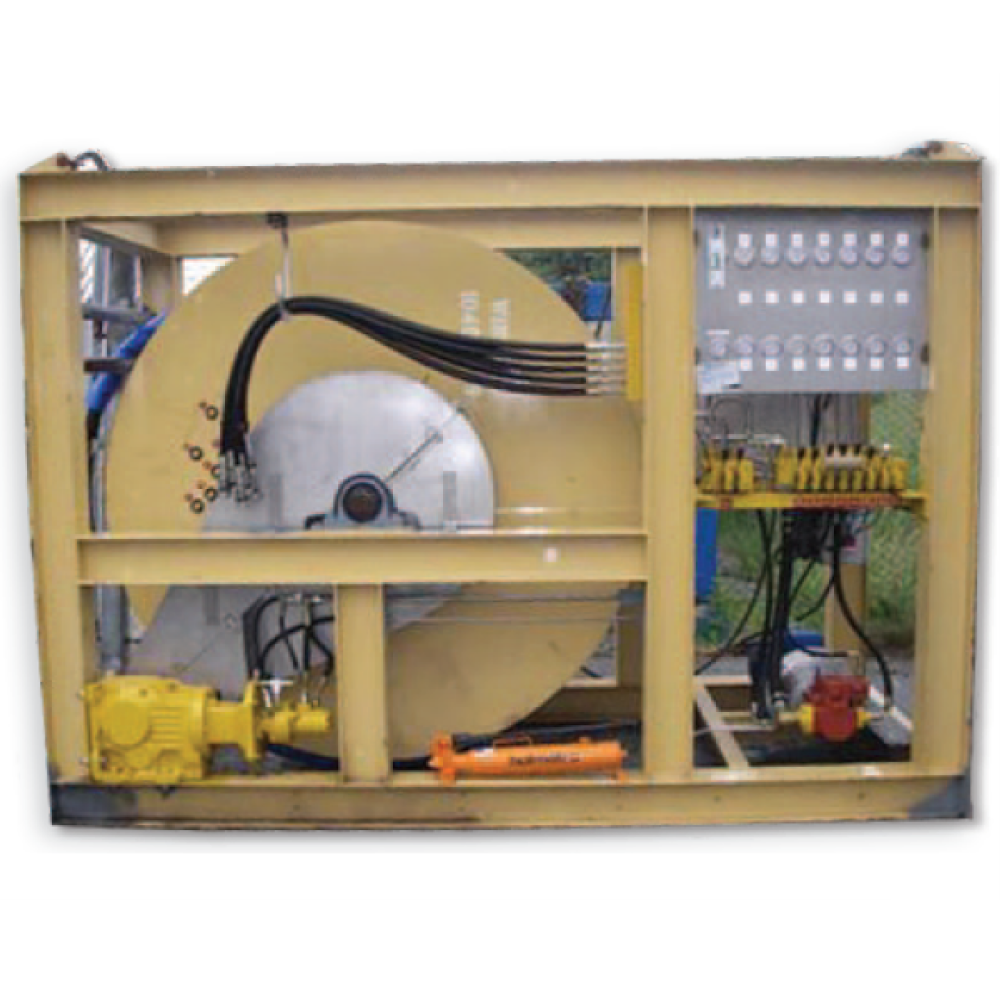

Hose Reel

Dimension (L * W * H): 3150 * 1500 * 2200 mm

Weight: 3900 Kg

Drum Dimension: Outer dia:1950mm / Inner dia:1400mm / Width:790mm

K.W Rating HPU: 14,6 KW

Voltage 50 Hz: 400V / 440V

Voltage 60 Hz: 400V / 440V

Attachment equipment:
HPU and 10 each control valve block /
Quick connector from valve to drum

R.P.M: 1500r/min / 1800r/min

Working Pressure: 120 Bar

Max Pressure: 300 Bar

Lifting capacity: 2,3 T outer layer

Certificate: Form 4 certificate according to machine directive 522.
