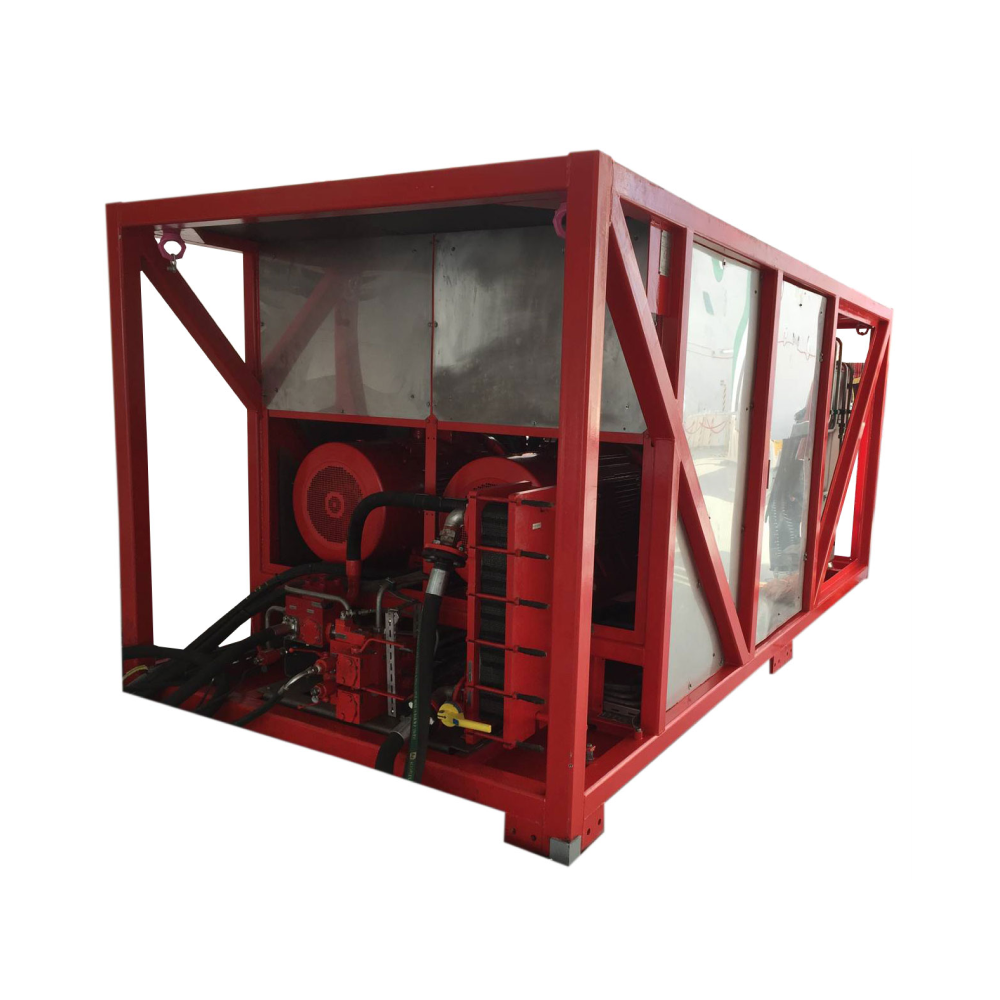

Drilling Auxillary HPU

Termination ports:

Pressure:

• 2x 1 ½” ISO 6162-2
• 3x ¾” NPT F

Return:

• 2 ½” ISO 6462-1
• 1” ISO 6162-1

Drain:

• 2x 1” NPT F

Water connection:

• 2x 2” ASME RF

Specifications & Dimensions

Unit marking: CE Ex II 3G IIA T3

Dimensions: 5000x2300x2212 (LxWxH)

Main Electric engines

The unit is powered by 2 of 170 kW ATEX approved electric engines.

Power rating: 2x 170 kW

Power supply: 690 VAC 50 Hz

Main Hydraulic pumps:

The unit is equipped with 2 Hydraulic Pump

Capacity : 2x250 ccm

Pressure rating: 350 bar

Unit main data:

Power: 2x195 kW, 1x 7,5 kW – Circulation cooling pump

Max. operation pressure: 207 Bar (3000 PSI)

Max operation flow: 650 l/min @207 bar@50 Hz

Dry weight: 10 Ton

Hydraulic tank capacity: 3000 l

Circulation line sea water cooler 89 kW

Utility consumption for:

Aux HPU

Tag number: HY8121-001/ 10-CT-210001

Electrical supply: 690 VAC - 50Hz – 2x 175 kW + 7,5 KW

Cooling water requirements:

• Temperature controlled water circuit- max. 700 l/min,
• Water temp. max. 39 °C

DC IS Power: 3 x 20 mA = approx. 0,5 W

Non IS Power: 4 x 20 W =80 W
