Interlock Control Panel
Interlock Hytech Control Panel is one of the series of Hydraulic Hytech Control Panels. It is designed for safe and high accuracy control and operations of the Air operated Flush Mounted Spider (FMS) and and hydraulic Elevators.
General information

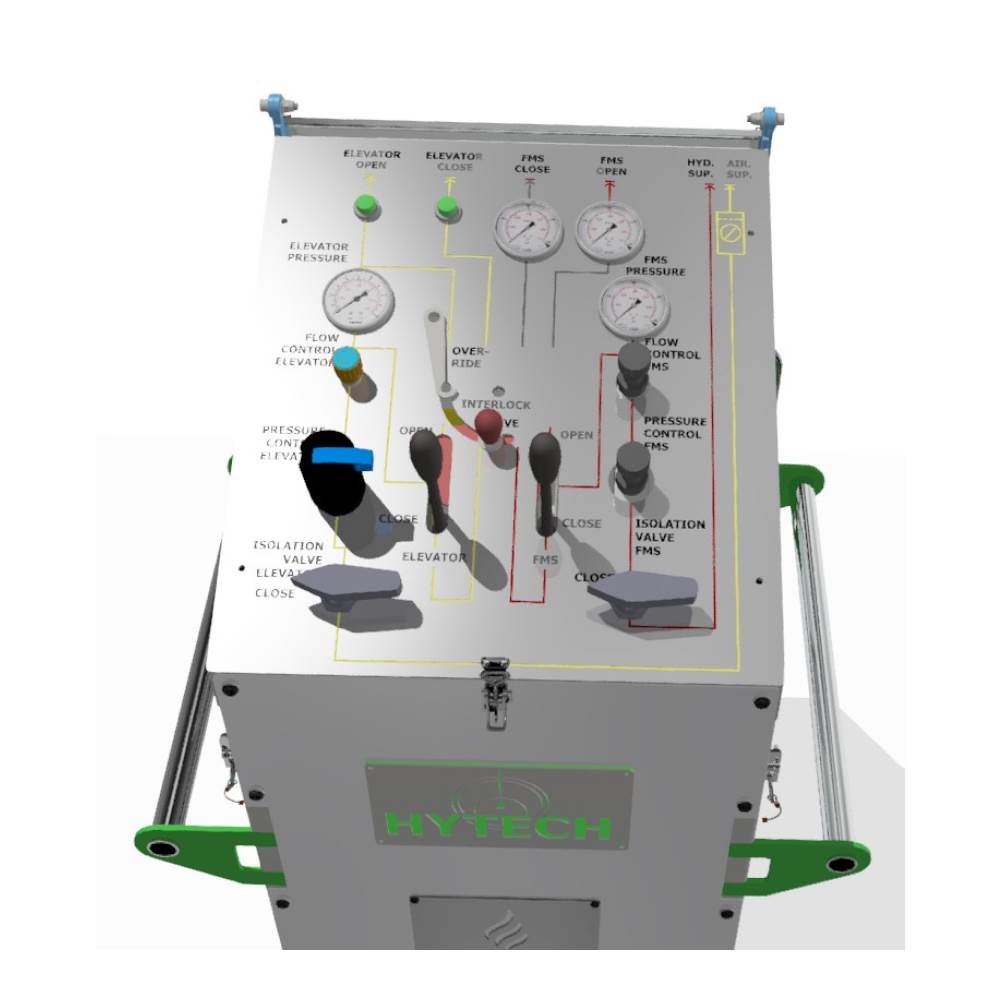

The Hytech Interlock Control Panel has two systems: Air System to operate FMS units and hydraulic system to operate Elevators.
Interlock system ensure that only one of the functions can be use in the same time. For adjustment and installation it is possible to override that function.

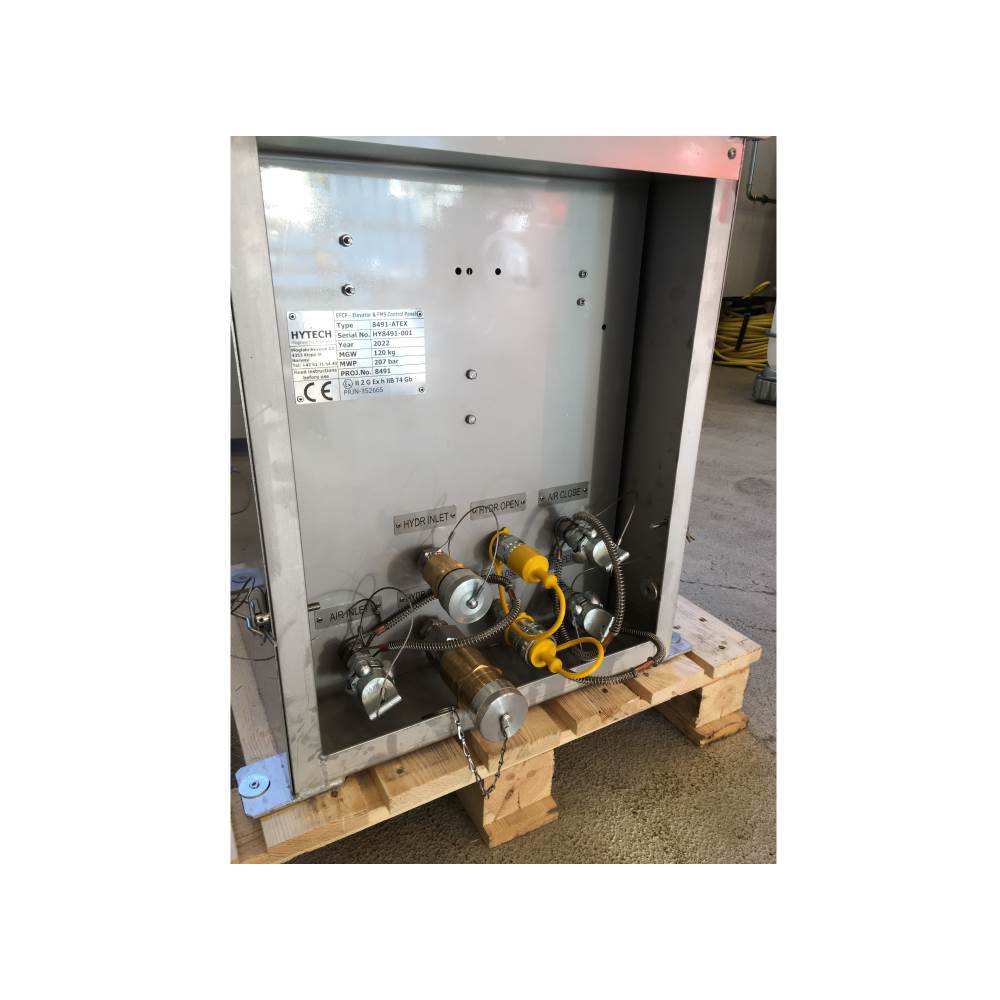

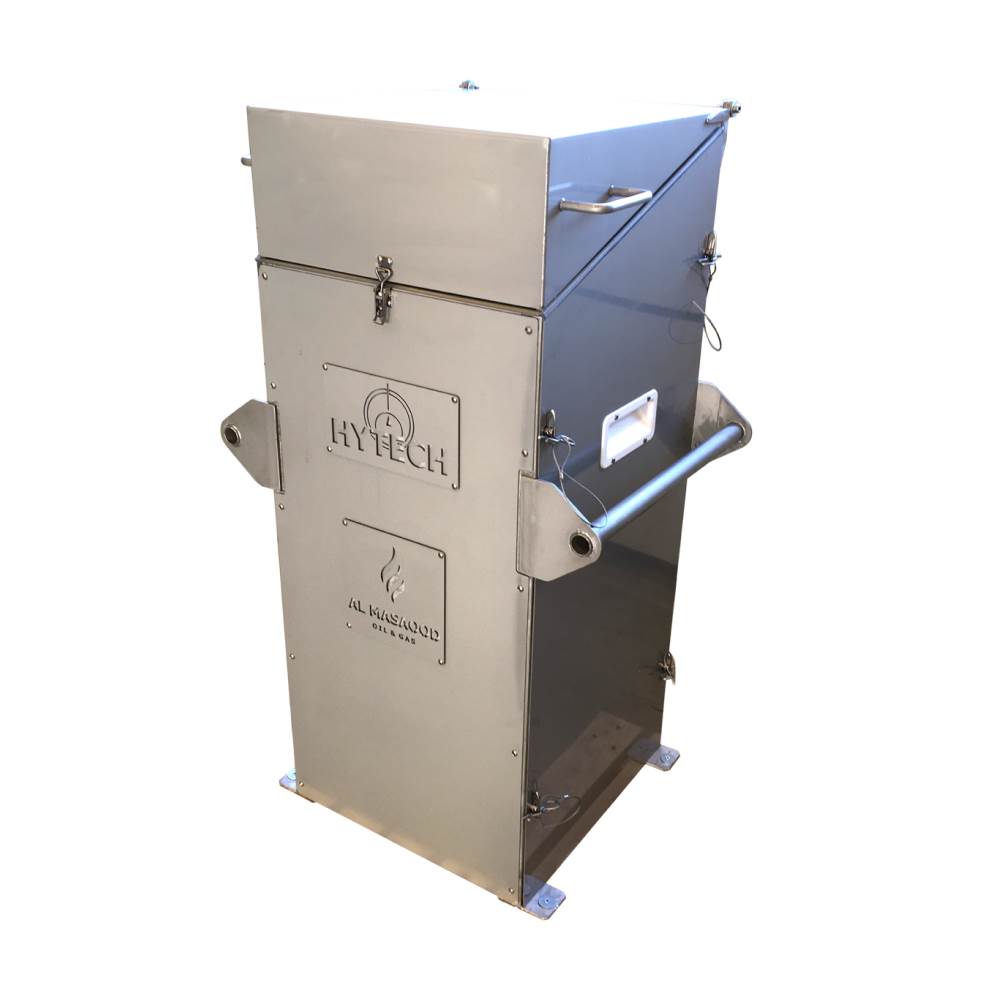

System is built in stainless steel frame. To provide easy access for inspection and maintenance, both side plates are mounted on quick release elements. Front and back panel are bolted to the frame.
All pneumatic and hydraulic systems are built with well known and proven components.
Hydraulic system is built on stainless steel AISI 316 pipes and fittings.
Features & Benefits
- Ex and Non- Ex version
- Interlock Safety Function
- Robust and solid Stainless Steel protection frame
Specifications
General
Hydraulic operation pressure
3000 PSI (207 Bar)
Air supply
10 bar
ATEX / Ex Zone Classification
Zone 1
Frame dimensions (L/W/H)
740 x 574 x 1233 mm
Weight - Umbilical Reel
120 kg
Ambient temperature operation
- 10° to + 45° C
Design temperature
- 20° to + 45° C
Maximum humidity
95%
Applicable standards
EU Directive
2006/42/EC
Machinery Directive
EU Directive
2014/34/EU
ATEX Directive
EU Directive
2009/104/EC
Use of Work Equipment Directive
EU Directive
2014/35/EC
Low Voltage Directive
EU Directive
2014/68/EU
Pressure Equipment Directive - PED
